FC265 Touch screen FCU thermostat with Modbus

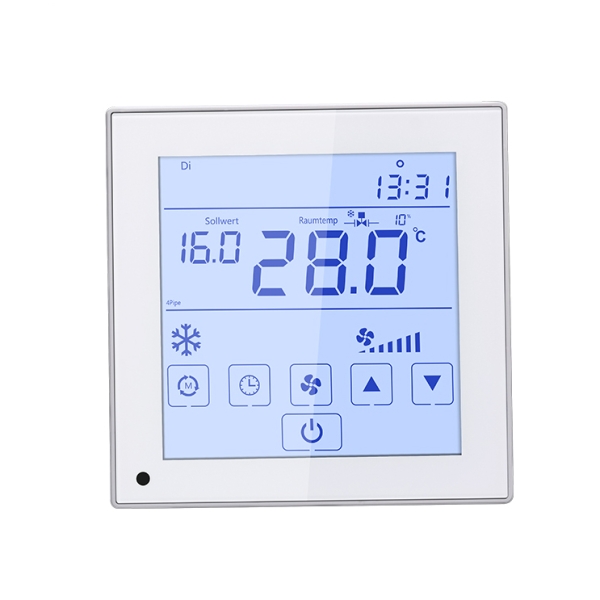

FC265 series is a fashionable touch Screen thermostat. It’s stand-alone microprocessor with LCD display. The thermostats are designed to on/off  (or 0-10V output) control fans, motorized valves, dampers in fan coil unit or VAV air conditioning systems. Models are available for heating/cooling/ventilating control of 2-pipe or 4-pipe fan coil unit. It's communicating thermostat with Modbus RS485.

7+4 periods programmable

FC265-5DO,  on/off valve, 3-speed fan

FC265-2AO3DO, modulating valve & 3-speed fan

FC265-3AO2DO, modulating valve & EC motor fan



Description

Features:

Fashionable and good designe appearance
Detect and Display Room Temperature
Large LCD display touch screen
External sensor
Cool, heat, ventilating and auto mode
3-speed fan and auto mode control
7+4 periods programming
2-pipe or 4-pipe fan coil unit
Connect 2-wire or 3-wire valves
Key lock function to avoid mistake operation
Celsius (°C)/Fahrenheit (F°) set


Specifications:

Power Supply 24VDC/AC, 50/60Hz
Self comsumption <3W
Load current Max 3A
Setpoint Range 1-50°C ( Default 16-30°C)
Set Unit 1°C/step
Display Accuracy ±0.1°C
Networking Modbus RS485
Fan type 3-speed fan or EC motor fan
Outputs Relays or 0-10V analog signal
Temperature Sensor NTC 10K
LCD Touch screen LCD (64*41mm), Black backlight

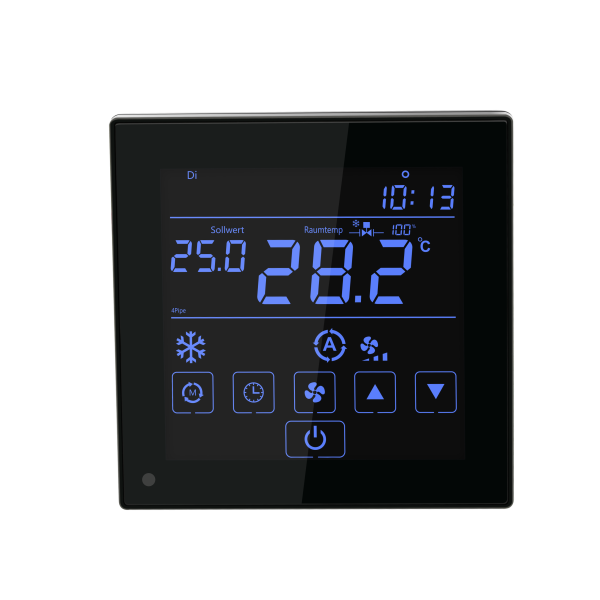

Enclosure Fire proof ABS, black or white color
Ambient Condition -10°C~60°C, 5-95% RH (non-condensing)
Dimension Display board:86*86*10.5mm
Mounting Wall mounted with standard EU box
Wiring Terminal block max. 1.5 mm²
Installation hole distance 60mm
Protection IP20 according to EN60529


Wiring diagram:

1. FC265-5DO networking FCU thermostat on/off type



2. FC265-2AO3DO networking FCU thermostat 0-10V output of valve control, on/off relay for 3-speed fan


3. FC265-3AO2DO networking FCU thermostat 0-10V of valve control and EC fan, 2 on/off auxiliary eletric heater



Shipping:
1. FedEx/DHL/UPS/TNT/EMS for samples, Door-to-Door;
2. By Air or by Sea for batch goods or FCL; Airport/ Port receiving;
3. Customers designated freight forwarders or negotiable shipping methods;

Quality Control & Lead-time:
1.Incoming material inspection;
2.In-line quality control;
3.100% inspection before shipment;
4.Generally within 5-7 days for samples; 35 days for Bulk quantities.
