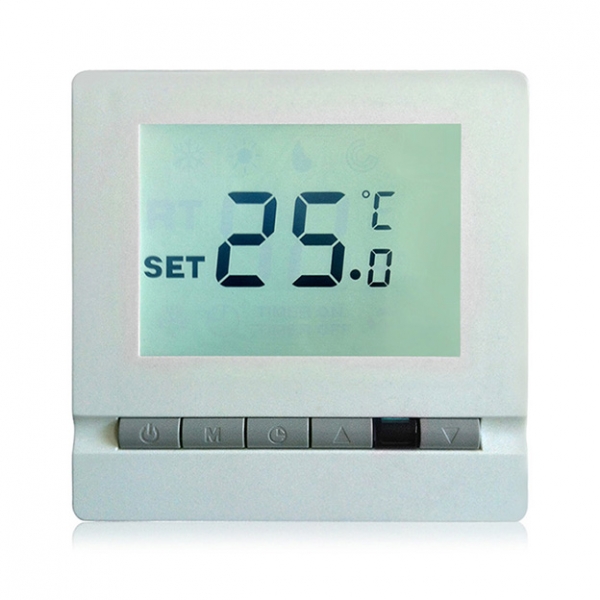

ST-C03 series is a simple designed heating thermostat with a big LCD display. It's can be used to control thermal valve actuator or electric heating device to keep room in a warm and comfortable temperature.
Backlight is optional of blue, green, white color.
Output 3A or 16A or 20A
Measure range:0~40 Celsius
Temperature control Accuracy :+/-1 Celsius
Power supply: 85-250VAC ( 24V optional )
Power consumption:<1W
Sensor type:NTC B=3380 10K@25Celsius
Non-programmable
Remote function: YES(optional)
Control mode:3A / 16A heating
Body material: Antiflaming PC
internal+external sensor
Large LCD display + back lighting
DIMENSIONS:86x86X12mm
TUV CE
Wiring Diagram:
Shipping:
1. FedEx/DHL/UPS/TNT/EMS for samples, Door-to-Door;
2. By Air or by Sea for batch goods or FCL; Airport/ Port receiving;
3. Customers designated freight forwarders or negotiable shipping methods;
Quality Control & Lead-time:
1.Incoming material inspection;
2.In-line quality control;
3.100% inspection before shipment;
4.Generally within 3 days for samples; 15-20 days for Bulk quantities;
Payment Term:
30% deposit before production, 70% after goods insepction and before shipment;
L/C, T/T, Western Union, PayPal is acceptable;
Motorized Valve(Two-way Motorized Valve, Valve, Three-way Motorized Valve, Motorised Valve) are made of Actuator and Valve Body.
