ST-C07 Touch Screen Thermostats 3A, 16A, 30A
Home Products Heating Thermostat

ST-C07 Touch Screen Thermostats 3A, 16A, 30A

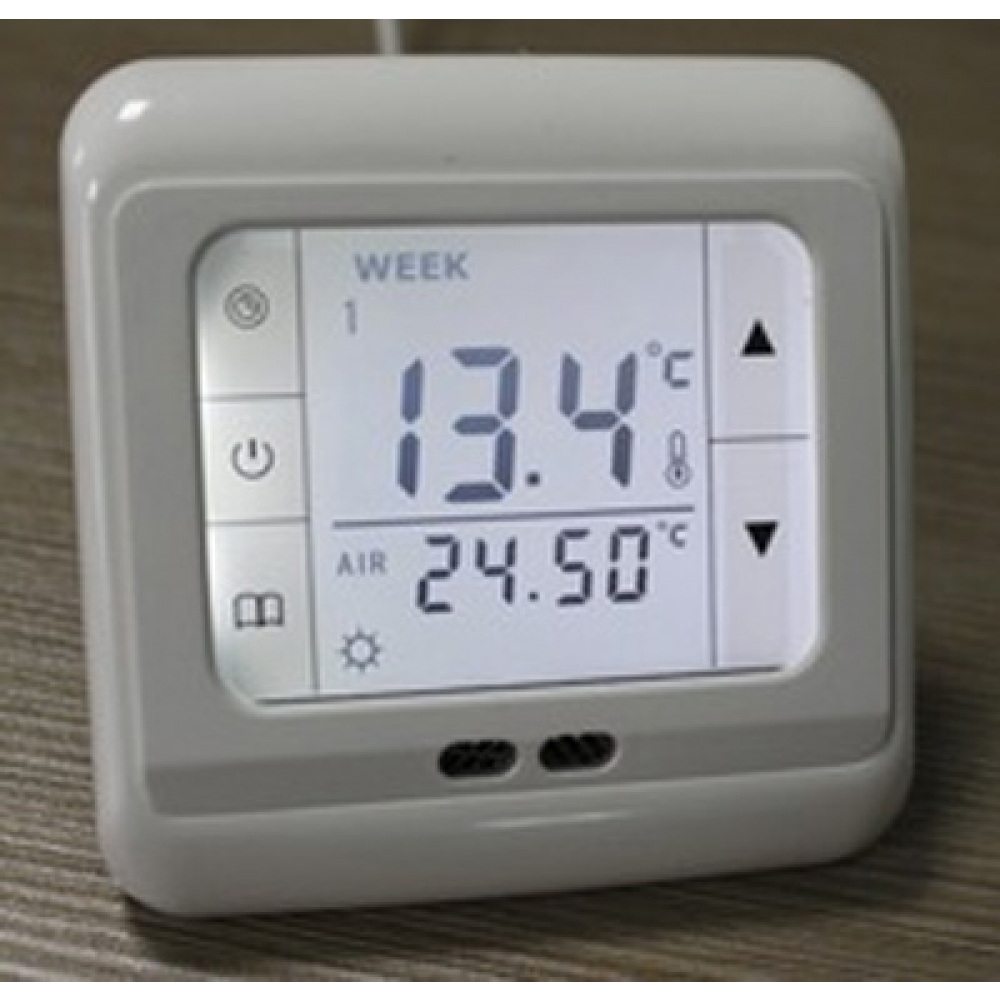

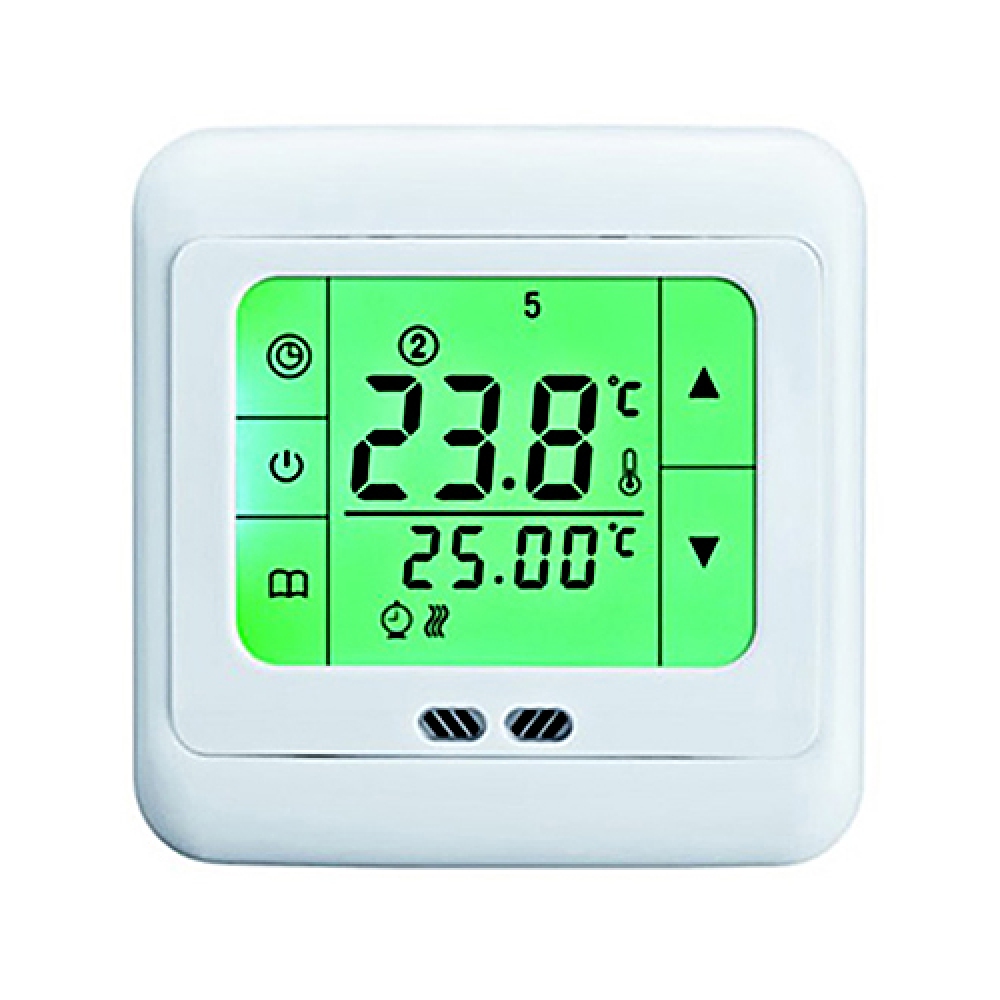

ST-C07 series thermostat is a touch screen thermostat. It's adopting world-advanced microcomputer chip, automatically open and close load (electric heating equipment or valves). It keeps room in a comfortable temperature and save energy. External sensor is availabe. White, green or blue backlight is optional.

Description

Features:

● 5+2 / 6+1 / 7days 4 period programming
● Large LCD display with backlight ( Green, Blue, White optional)
● Infrared remote control is optional
● Two work mode switchover ( programmable, non programmable)
● Low temperature protection function
● Memory recently setting parameters during power off
● Anti-freezing protection.

Specifications:

Measure range:0~40 Celsius
Temperature control Accuracy :+/-1 Celsius
Power supply: 85-250VAC ( 24V optional )
Power consumption:<1W
Sensor type:NTC  B=3380 10K@25Celsius
Multi. periods programe (5+2/6+1/7)
Control mode:3A / 16A / 30A heating
Body material: Antiflaming PC
TUV CE
internal+external sensor


Wiring Diagram:



Shipping:

1. FedEx/DHL/UPS/TNT/EMS for samples, Door-to-Door;
2. By Air or by Sea for batch goods or FCL; Airport/ Port receiving;
3. Customers designated freight forwarders or negotiable shipping methods;


Quality Control & Lead-time:
1.Incoming material inspection;
2.In-line quality control;
3.100% inspection before shipment;
4.Generally within 3 days for samples; 15-20 days for Bulk quantities;

Payment Term:
30% deposit before production, 70% after goods insepction and before shipment;
L/C, T/T, Western Union, PayPal is acceptable;
