6633 electric thermal valve 24V/110V/230VAC

● Passed CE/ISO9001/ISO14001
● Temperature range:6-28 °C
● Setting number 0 to 5
● Limitable and lockable
● Can be mounted vertically or horizontally
● M30 x 1.5 universal type head to body
● Chrome plated
● Frost protect
● DN15/20/25 avaiable
● OEM branding available
● Liquid sensor

Description

1. Temperature sensor

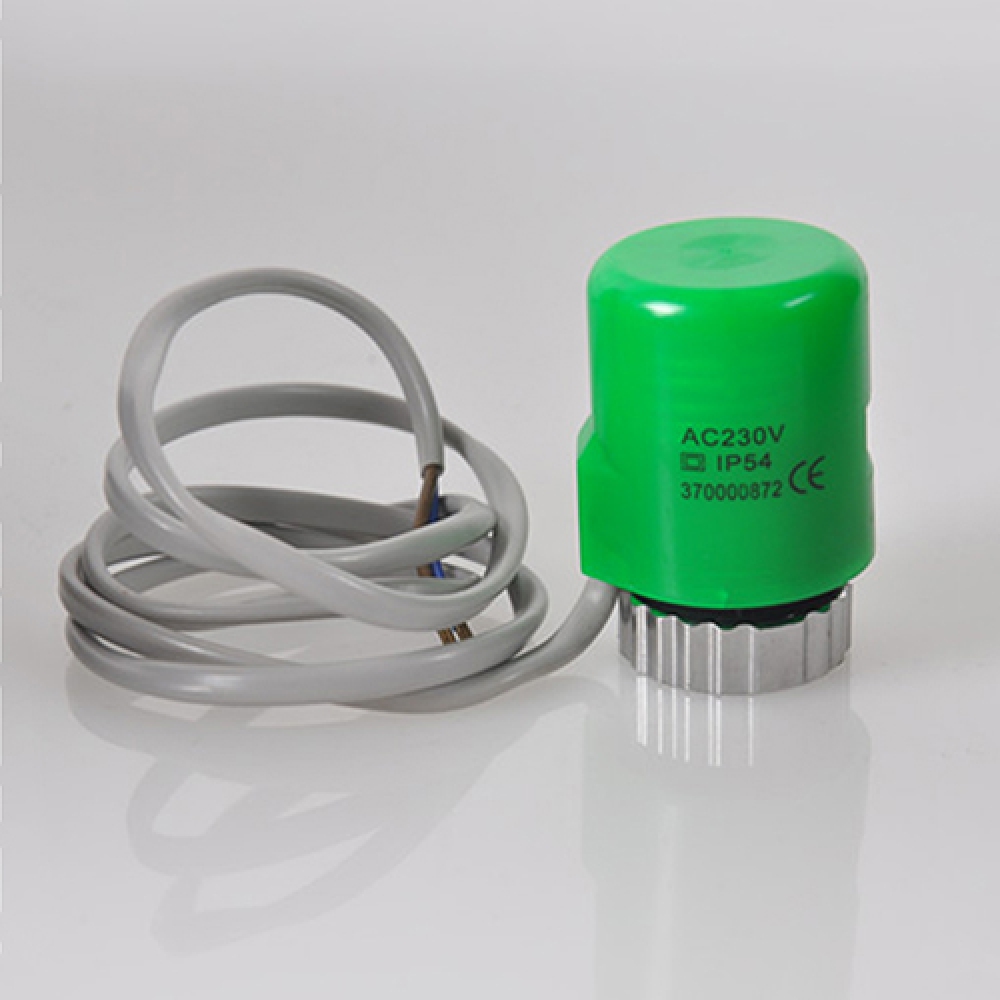

Power supply: 24Vac, 110Vac, 230Vac

Temperature hysteresis:1.0 k

Max admissible static pressure:10 bar
Max admissible differential pressure:1.0 bar
Normal pressure:16 bar
Max temperature resistance:110 degree

Temperature extent: 6-28 degree

 Relation Mark with temperature


Room temperature(°c): 6 12 16 20 24 28
Scale interval: * 1 2 3 4


2. Thermostatic valve body
Made of brass,easy to be installed
Low resistance
Water temperature : less than 120 degree
Normal resistance to pressure: 10 bar
Size DN15(1/2") DN20(3/4'') DN25(1'')

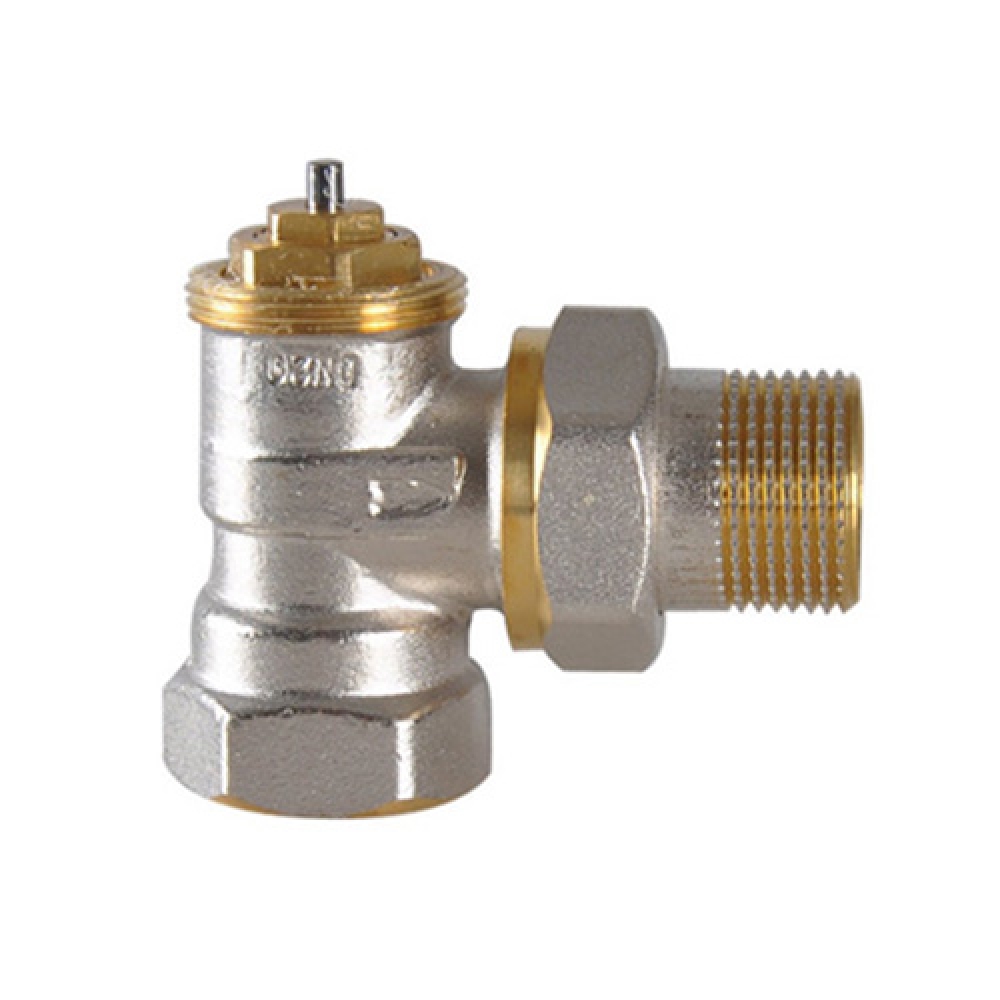

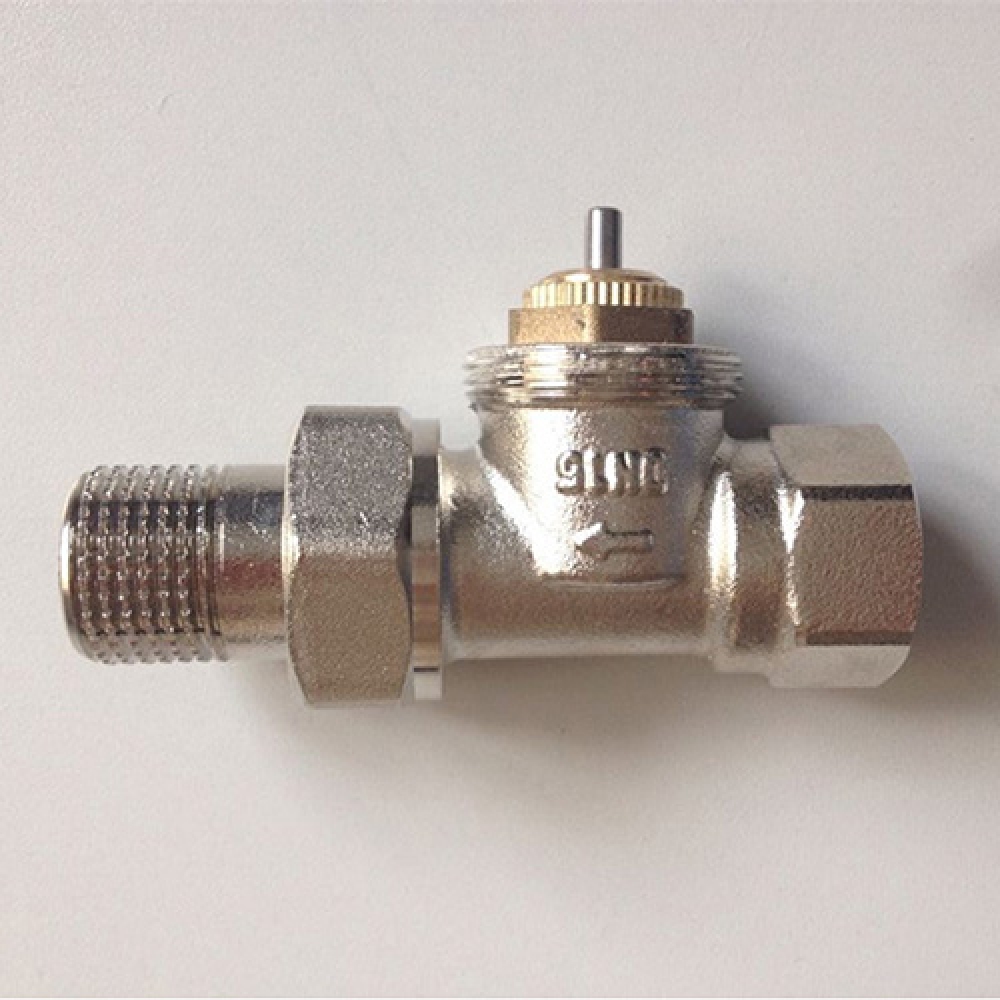

Type Angled valve Straight valve 2-port vavle

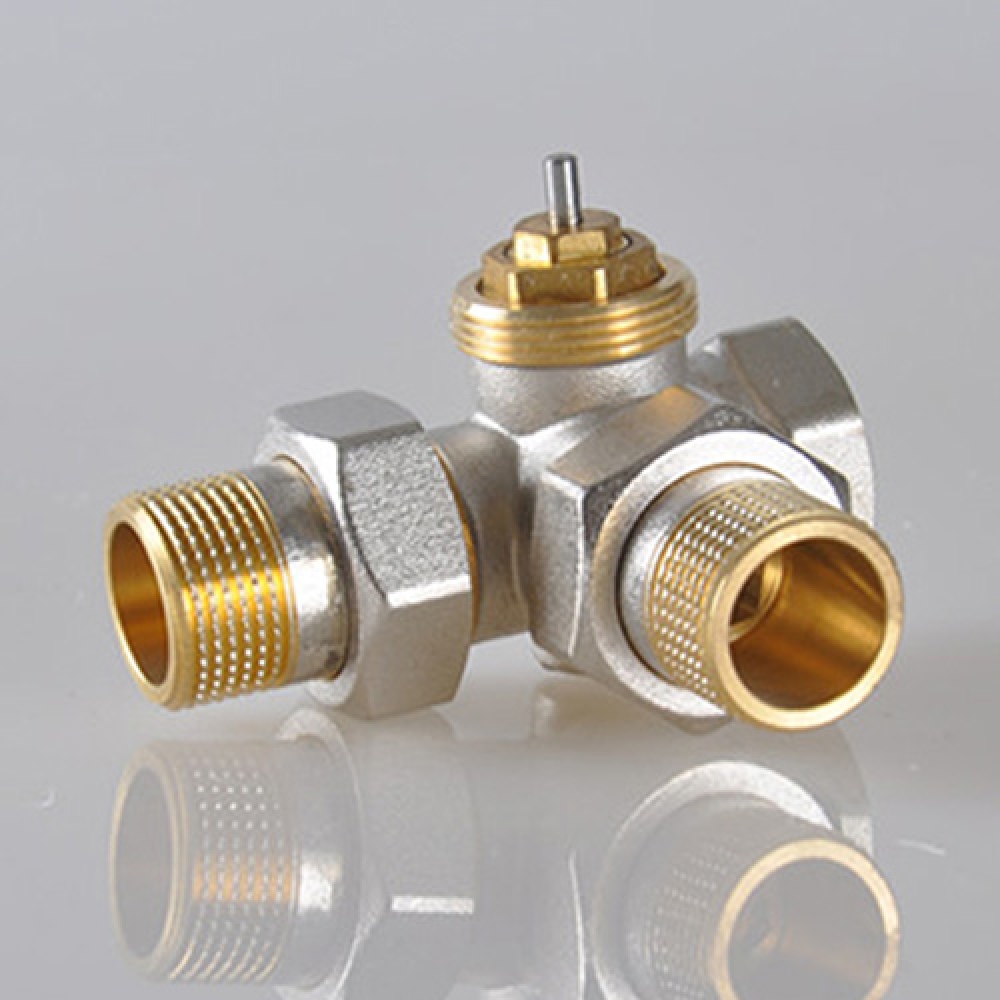

  3-port valve H valve Mixing valve


                            Weight information (valve body only)

  DN15(1/2") DN20(3/4'') DN25(1'')
Straight 245g 315g 390g
Angle 230g 300g 370g
3 way 360g 455g 600g

3. Packaging & Shipping
Packaging Details:
           50 sets per carton with paper box ,carton size:51x36x22 cm;
           40 sets per carton for blister packing, carton size : 48x35x29 cm;
           100 pieces per carton for only thermostatic head, cartons size: 40x30x30 cm;
           60 pieces per carton for only thermostatic valve body, carton size: 41x25.5x26 cm;
           About 20000 sets /20" container with blister packing;
           About 25000 sets/20" container with carton box;
           Pallet packing is available.
Delivery Detail:  25 days but based on your order quantity
