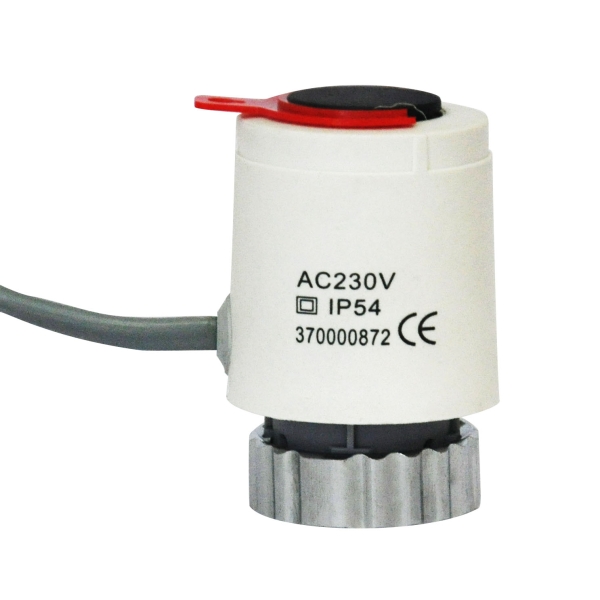

6651 New Type Thermal Valve Actuator

Voltage: 230VAC/ 24VAC/DC, 50/60Hz
Status: NC/ NO
Core: Chinese Core or Vernet Core
Power Consumption: 2VA
Thrust: 110N
Stroke: 3mm
Running time: 3-5min
Connection size: M30*1.5mm
Ambient temperature: From -5℃ to 60℃
Cable Length: 1m
IP54

Add To Basket Get A Quote

Description

1. Specifications:
Electro Thermal Heating Valve
Material: Brass
Size:DN15/DN20/DN25
Angle/Straight Valve
Voltage: DC12V,DC24V,AC110V,AC230V(220V)

Power Consumption: 2W

Thrust:110N

IP54
Starting Time: 3-5min
Join Size: M30*1.5mm
Environment Temperature :From -5C°to 60°C

Wire Length: 1000mm

2. Weight information (valve body only)

	DN15(1/2")	DN20(3/4'')	DN25(1'')
Straight	245g	315g	390g
Angle	230g	300g	370g
3 way	360g	455g	600g
