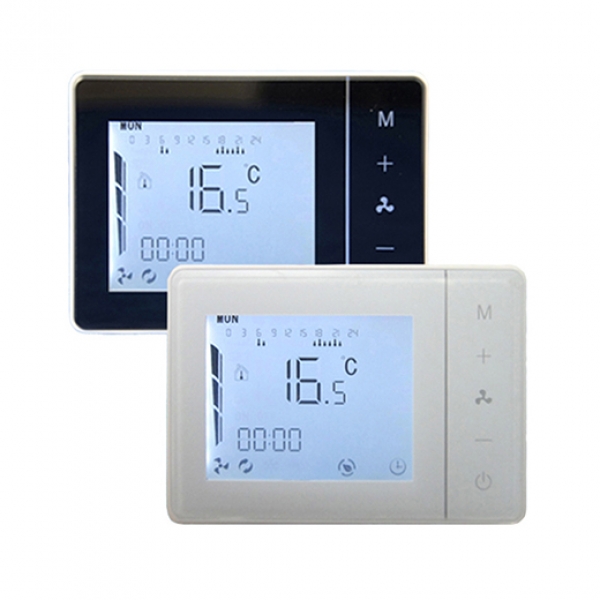

HY01AC LCD touch key room thermostat of FCU

HY01AC LCD touch key room thermostats of FCU are designed to control room temperature in industrial, commercial or residential environment via controlling fan coil unit of air conditioning system. Models are available for cooling/heating/ventilating control of 2-pipe or 4-pipe fan coil units.

HY01AC        FCU thermostat

HY01AC-MD Communicating FCU thermostat with Modbus RS485


Description

Introduction:

HY01AC LCD touch key thermostats are used to control room temperature by comparing room temperature with setting temperature to open or close fan coil unit and motorized valve in central air conditioning system. The thermostats can keep people in a comfortable temperature room and help to saving energy.


Features:

1. Big LCD touch key screen display

2. 5+2/6+1/7 days programming

3. Centigrade/ Fahrenheit

4. 3-speed fan control: low, medium, hight or auto

5. Mode: cooling, heating, ventilating or auto changeover

6. Child lock function

7. Blue backlight

8. Communicating function: Modbus RS485 optional


Specifications:

Power supply                         200-240Vac, 50/60Hz

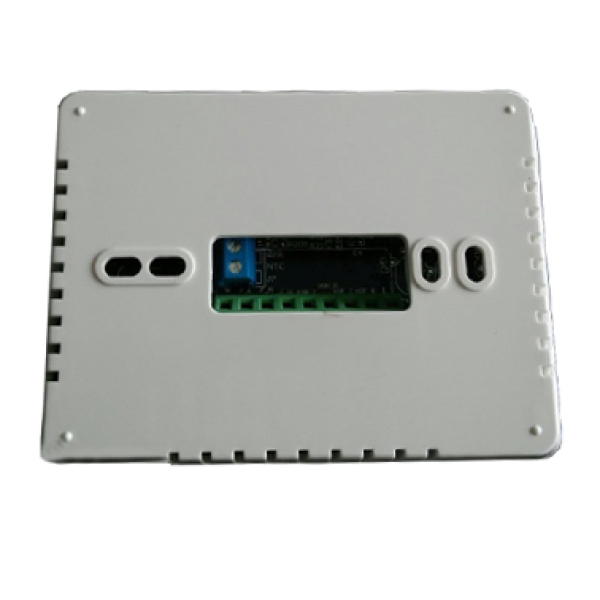

Installation             Surface mounting

Rated current                         3A

Sensor                   NTC

Set point range                      5~35

Accuracy                ±0.5°C

Ambient  temperature           0~50

Protection Class      IP30

Size                                      130mm *90mm *27mm

Housing                   ABS  plastic

Storage  temperature           -10~60


Wiring Diagram:
