HY08AC PID Touch Screen Thermostat 0-10V

HY08AC series touch screen communicating thermostat of FCU is fashionable design with big LCD display. It’s stand-alone microprocessor. The thermostats are designed to modulating valves in fan coil units and AC.

HY08AC  0-10V PID temperature controller

Description

Introductions:

ST-HY08AC series are touch Screen thermostat. It has fashionable appearance with large LCD display. The thermostats are designed to modulating valves 0-10Vac. Modes are available for  heating/ cooling/ ventilating or Auto control of f 2-pipe or 4-pipe fan coil units. It's easy to install and operate.

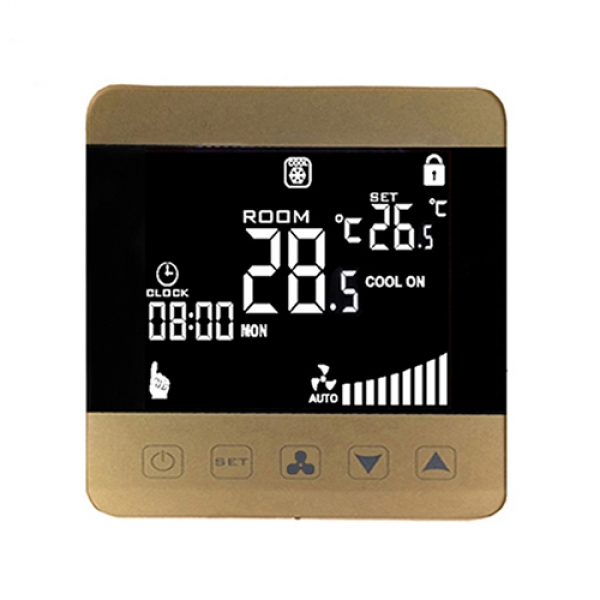

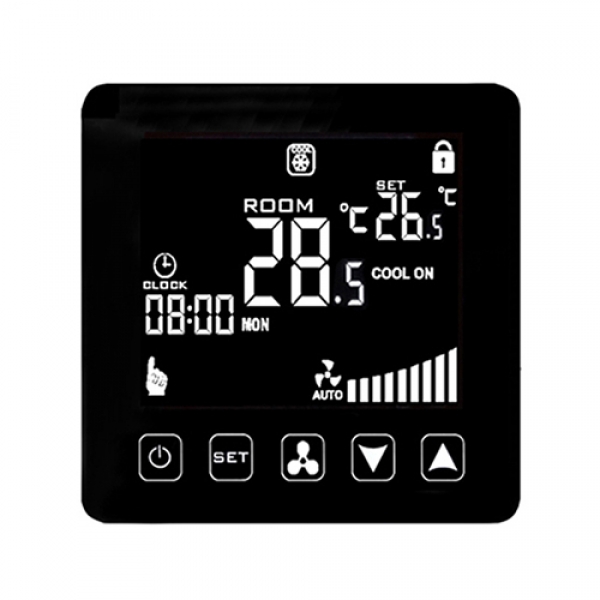

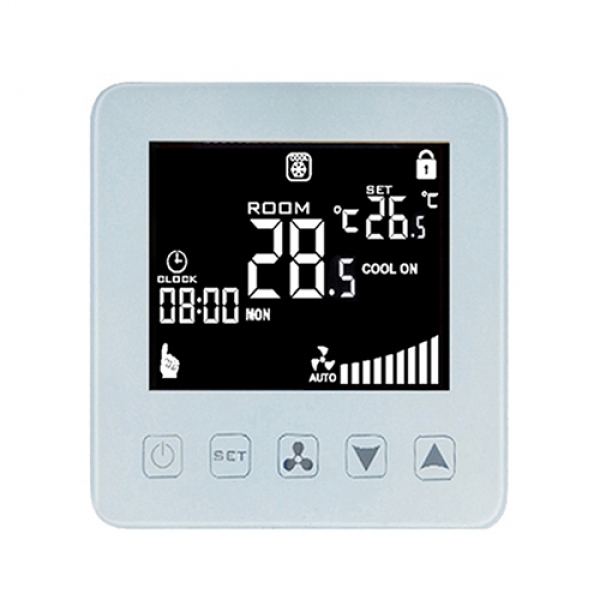

4 models optional: HY08AC-01, HY08AC-02, HY08AC-03, HY08AC-04 PID thermostat. Blue, white or black backlight optional.


Features:

Fashionable appearance
Detect and Display Room Temperature
Large LCD display touch screen
Cool, heat, ventilating and auto mode
3-speed fan and auto mode control
7+4 periods programming (-NK,communicating type not included)
2-pipe or 4-pipe fan coil unit
Connect 2-wire or 3-wire valves
Key lock function to avoid mistake operation
Celsius (°C)/Fahrenheit (F°) set


Specifications:

Power Supply: 24VDC/AC
Rate Current 3A
Setpoint Range: 5-35°C
Ambient Condition: 0~50, 5-95% RH (non-condensing)
Set Unit: 1/step
Display Accuracy: ±0.5°C
Display: LCD display touch screen
Mode Setting: Cool, Heat, Ventilating
Fan Speed Adjust: Low, Medium, High, Auto
Control Performance: 0-10V modulating
Temperature Sensor: NTC 10K
Enclosure: ABS+PC plastic
Fan power supply 24V/110V/240V, 50/60Hz
Networking: RS485
Dimension: 86*86*30mm
Storage temperature range: -10~50
Mounting: Wall mounted
Wiring: Terminal block max. 1.5mm2
Protection: IP30

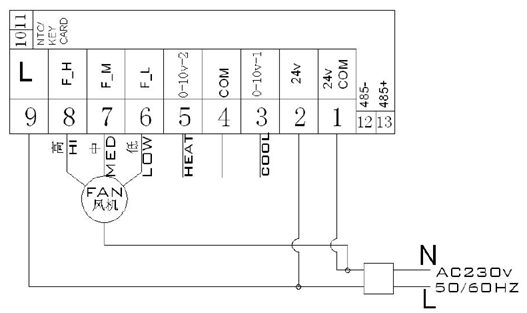

Wiring Diagram:
