HY06RF Programmable Wireless HeatingThermostat for Gas Boiler/ Water or Electric Heating
Home Products Heating Thermostat

HY06RF Programmable Wireless HeatingThermostat for Gas Boiler/ Water or Electric Heating

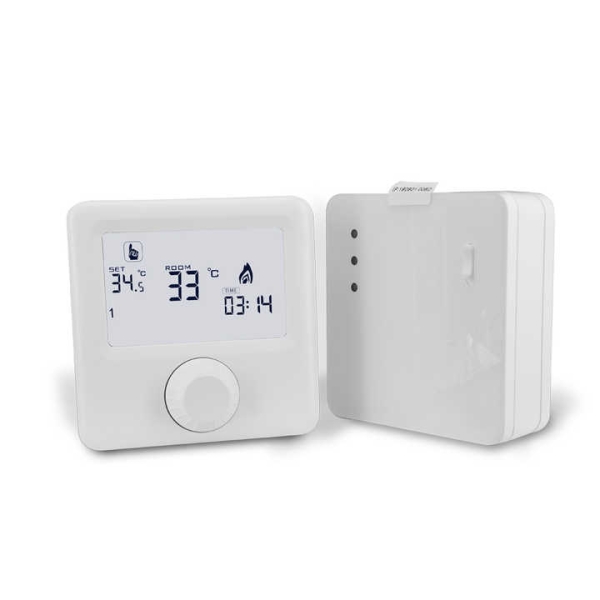

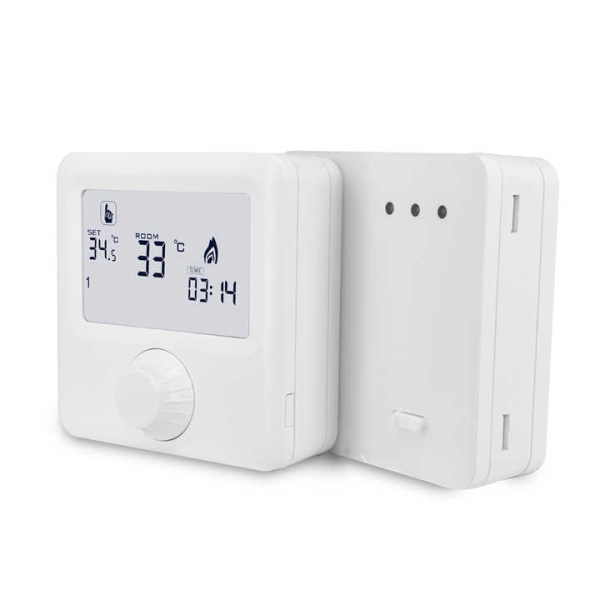

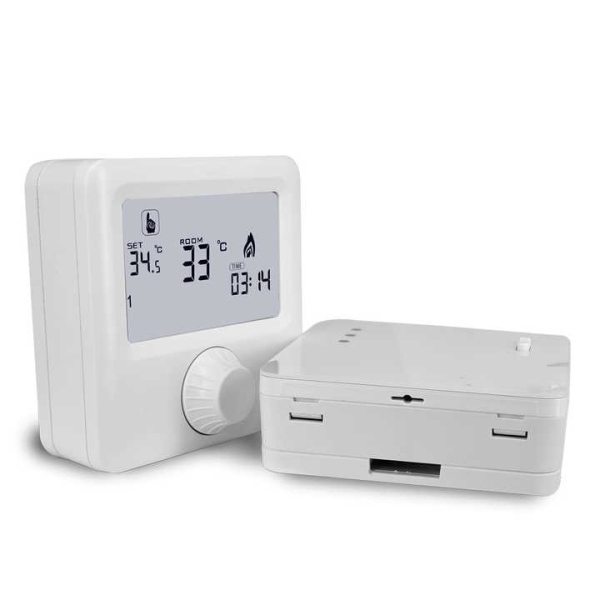

HY06RF is a wireless heating thermostat 433MHz with LCD screen. It uses to wall-hung boiler heating or electric underfloor heating device or water heating systems. Backlight: bule, white is optional.

Output: 5A/ 16A(electric heating) /3A(water heating)


Description

Features:

● Weekly programming

● Large LCD display with backlight (Blue, White optional)
● Infrared remote control is optional
● Low temperature protection function
● Memory recently setting parameters during power off
● Anti-freezing protection


Specifications:

Measure range:5~35℃
Accuracy :+/-0.5℃
Power supply: 2AA*1.5V alkaline batteries
Contact capacity: 5A / 16A(electric heating) / 3A(water heating)

Programming: weekly programming

Body material: Antiflaming PC+ABS
Large LCD display + back lighting
DIMENSIONS:86x86X27mm

Mounting type: wall-surface mounting

Frequency: 433MHz

Certifications: CE, RHOS

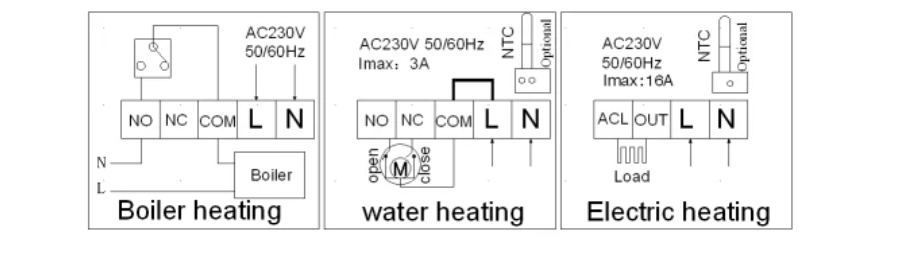

Wiring Diagram:



Shipping:

1. FedEx/DHL/UPS/TNT/EMS for samples, Door-to-Door;
2. By Air or by Sea for batch goods or FCL; Airport/ Port receiving;
3. Customers designated freight forwarders or negotiable shipping methods;


Quality Control & Lead-time:
1.Incoming material inspection;
2.In-line quality control;
3.100% inspection before shipment;
4.Generally within 3 days for samples; 15-20 days for Bulk quantities;

Payment Term:
30% deposit before production, 70% after goods insepction and before shipment;
L/C, T/T, Western Union, PayPal is acceptable;
