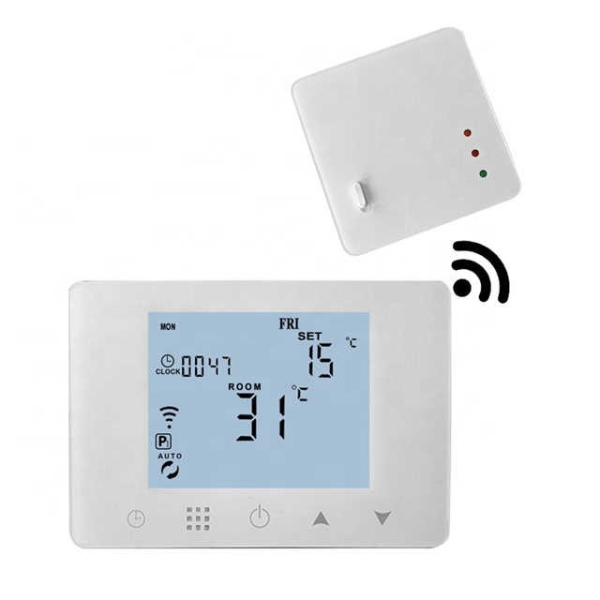

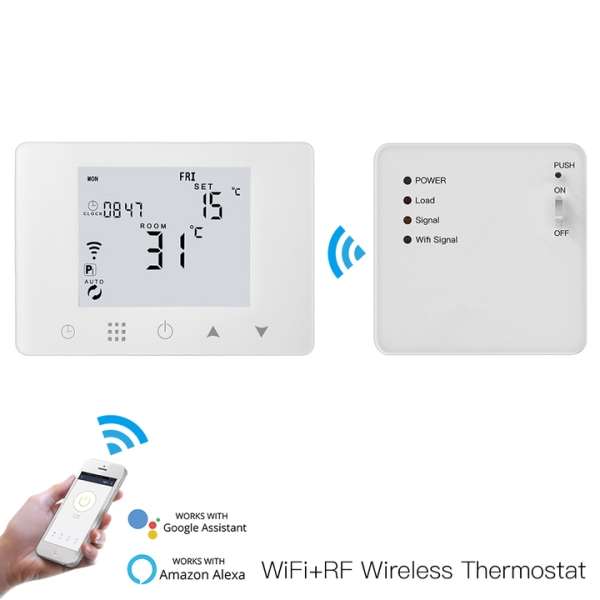

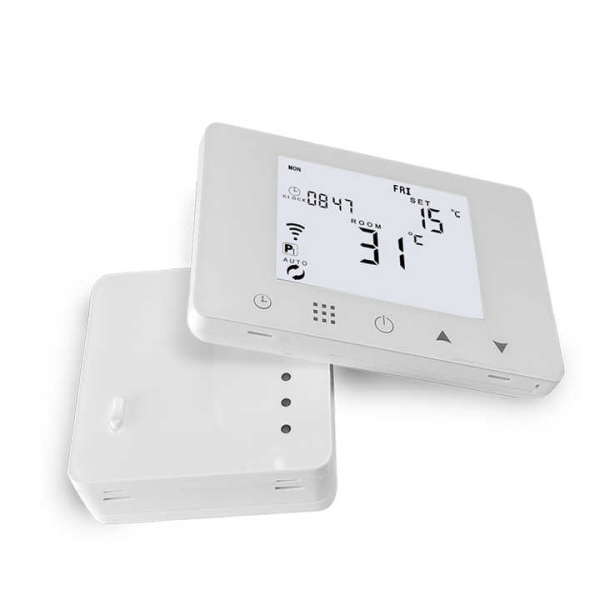

HY09RF-WiFi wireless heating thermostat is with 433MHz receiver and Wi-Fi controled by phone remotely. It uses to wall-hung boiler heating or water heating or electric heating device.
Backlight: bule, white or green optional.
Output: 16A(electric heating) , 3A(water heating)
● Wi-Fi wireless boiler heating thermostat
● Weekly programming
● Large LCD display with backlight (Blue, White optional)
● Low temperature protection function
● Memory recently setting parameters during power off
● Anti-freezing protection
Specifications：
Measure range:5～35℃
Accuracy :+/-0.5℃
Power supply: adapter or battery
Contact capacity: 5A / 16A(electric heating) / 3A(water heating)
Programming: weekly programming
Body material: Anti-flaming PC+ABS

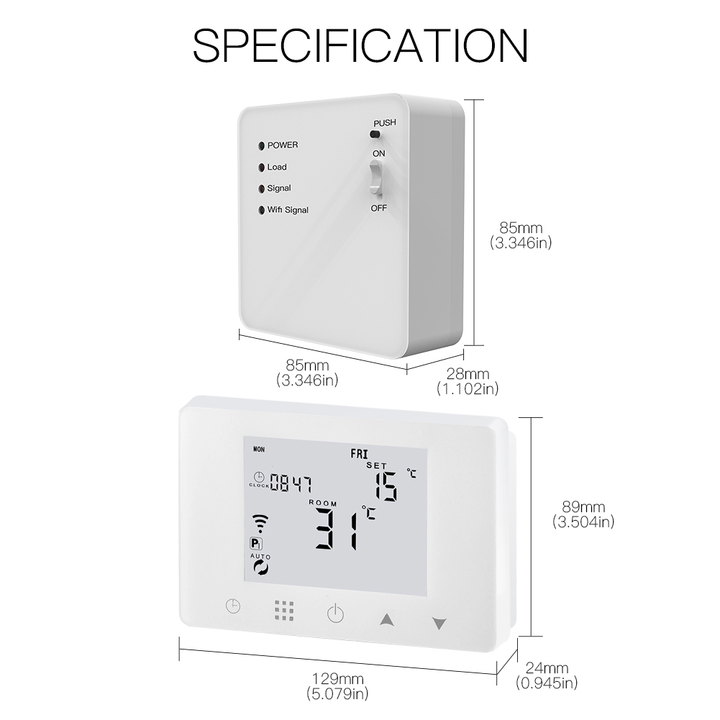

DIMENSIONS:86x86X27mm
Mounting type: Wall-surface mounting
Frequency: 433MHz and Wi-Fi
Certifications: CE, RHOS
Wiring Diagram:
